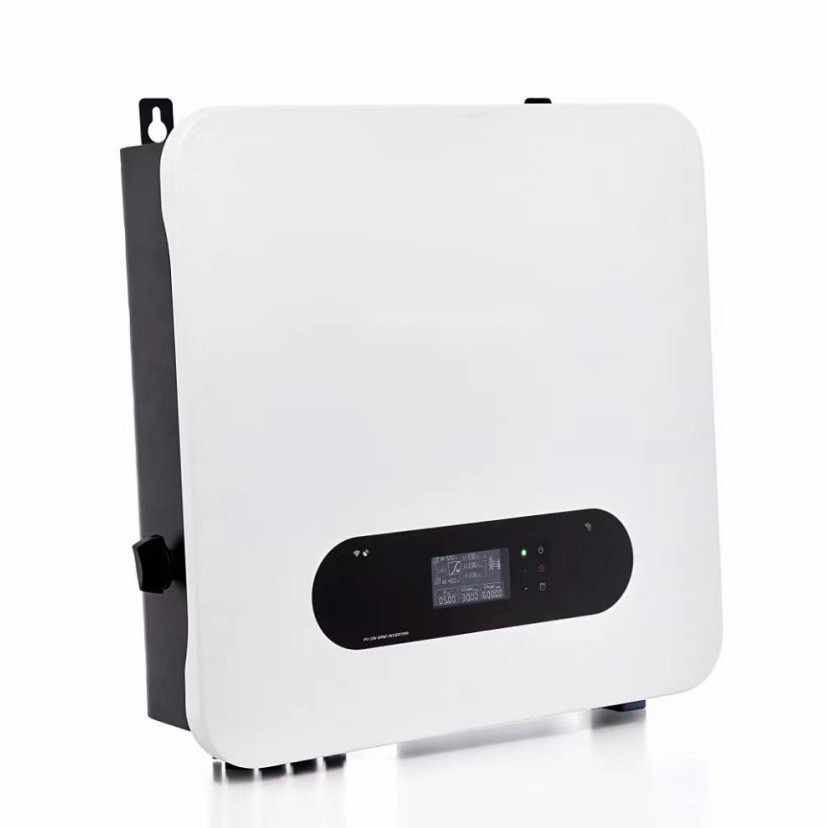

TP25KTL Three phase on grid inverter 25KW IP65
Category
Founded in 1996, Ningbo economic&technical development zone Hengda Electrical Co., Ltd., a provincial hi-tech enterprise, is specialized in the R&D, manufacture and sales service of lighting fittings and solar energy PV module connectors.
keyword：
gird tie inverter
3phase on grid inverter
on grid inverter
Product Detail
Overview
Essential details
|
|
| Supply Ability | 10000 Set/Sets per Month |
Packaging & delivery
| Packaging Details | 1PCS/CTN | ||||||
| Port | NINGBO | ||||||
| Lead time: |
|
|
Product Name
|
TP25KTL single inverter 25000W anytime anywhere remote monitoring |
Advantages
Simpler Quick and easy single person Installation
Fault codes warning view on LCD display
Safer comply with international quality standards tested by TUV, BV, Dekra, etc.
Great reliability
IP65 ingress protection 10+years R&D accumulation and support smart meter optional
|
Model No |
TP15KTL |
TP17KTL |
TP20KTL |
TP25KTL |
|
Input ( DC) |
||||
|
Max DC power (W) |
22500 |
25500 |
30000 |
30000 |
|
Max DC voltage (Vdc) |
1000 Vd.c. |
1000 |
1000 |
1000 |
|
Min working voltage (Vdc) |
250 Vd.c. |
250 |
250 |
250 |
|
MPPT voltage range (Vdc) |
250...850 Vd.c. |
250~850 |
250~850 |
250~850 |
|
Max input current / per string (A) |
26A/18A |
26/26 |
26/26 |
26/26 |
|
Number of MPP trackers |
2 |
2 |
2 |
2 |
|
Number of input string |
3 |
4 |
4 |
4 |
|
Output (AC) |
||||
|
AC nominal power (W) |
17000 |
17000 |
20000 |
25000 |
|
Max AC apparent power (VA) |
18700 |
18700 |
22000 |
27500 |
|
Max output current (A) |
25 |
25 |
30 |
36 |
|
Nominal AC output |
50/60 Hz ; 400 Vac |
|||
|
AC output range |
45/55 Hz ; 280 ~ 490 Vac (Adj) |
|||
|
Power factor |
0.8leading...0.8laging |
|||
|
Harmonics |
<1.5% |
|||
|
Grid type |
3 W/N/PE |
|||
|
Eficiency |
||||
|
Max efficiency |
98.3% |
98.5% |
98.6% |
98.7% |
|
Euro efficiency |
97.8% |
98.1% |
98.1% |
98.2% |
|
MPPT efficiency |
99.9% |
99.9% |
99.9% |
99.9% |
|
Safety and Protection |
||||
|
DC reverse-polarity protection |
yes |
|||
|
DC breaker |
yes |
|||
|
DC / AC SPD |
yes |
|||
|
Leakage current protection |
yes |
|||
|
Insulation impedance detection |
yes |
|||
|
Residual current protection |
yes |
|||
|
General Parameters |
||||
|
Dimension (W/H/D)(mm) |
510*484*272mm/710*650*400mm |
|||
|
Net / Gross Weight (kg) |
35/47.5kg |
|||
|
Operating temperature range ºC |
-25 ~ +60 |
|||
|
Degree of protection |
IP65 |
|||
|
Cooling concept |
Natural convection |
|||
|
Topology |
Transformerless |
|||
|
Display |
LCD |
|||
|
Humidity |
0-95%, no condensation |
|||
|
Communication |
Standard WiFi; GPRS/LAN(optional) |
|||
|
Warranty |
Standard 5 years; 7/10 years optional |
|||
|
Certificates and Approvals |
||||
|
CQC, VDE-AR-N4105, VDE0126-1-1, IEC61727,IEC62116,EN50438,EN50549 |
||||
Company Profile
Top Hengda Electrical is a provincial hi-tech enterprise specialized in the R & D, manufacture and sales service of renewable energy such as inverters, solar panels, lithium batteries, solar connectors, junction boxes， lighting fittings etc. Our company covers an area of 11000 square meters, total investment of 10 million US dollars, with history of over 30 years.
Aiming at solar energy industry, based on the concept of "making the unique and the best products", TOP employed many talented personnel, began to research and develop solar products as early as 2004. We have 45pcs of different kinds of injection machines, 72pcs of different kinds of punching machines, more than 20pcs of ultrasonic welding machines, and many other advanced technology, assembling machines and testing equipment. Continuous developed, innovation goes on as it never ends. Our brand "Top" has won considerable domestic market share and a stable client base overseas. All products are certified with the certificates of C Q C, T U V, UL, V D E, CE, RoHS, S G S and so on. Our factory has obtained the certificates of I S O 9 0 0 1 Quality Management System and I S O1 4 0 0 1 Environmental Management System. With more than 30 years producing experience, our annual output has reached about 10,000,000pcs and we have exported more than 100 countries all over the world.
Welcome to inquire us! We will try our best to serve you satisfied.
Certification
Packing & Delivery
Packing:Customized packing, Can be designed according to customer's requirements, manual can be multi-languages, add customer logo, etc.
Delivery:We can do EXW, FOB, CIF, CNF, DDA, DDP service for most of the countries all over the world.
Faq
Q1: How to install and use the solar inverter?
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.
Q2: What if I don't have export experience ?
A2: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the most suitable shipping service.
Q3:Can you provide the free shipping to sea port ?
A3:Yes, we provide the free shipping to your convenient sea port.If you have agent in China, we can also ship it to them for free.
Q4: How is your technical support?
A4: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video. call anytime,our engineer will also go to oversea help our customers if necessary.
Q5: Can you get the the solar inverter customized for us ?
A5: Of course, brand name, machine color, designed unique patterns available for customization.
Q6: How to become your agent?
A6:Contact us through Whatsapp/ Skype/ Wechat/ Email, we will give you the best price and look forward to your greetings
