Top Hengda Mc-4 Solar PV Connectors Male


Founded in 1996, Ningbo economic&technical development zone Hengda Electrical Co., Ltd., a provincial hi-tech enterprise, is specialized in the R&D, manufacture and sales service of lighting fittings and solar energy PV module connectors.

keyword:

solar connector

hybrid solar charge controller inverter

hybrid solar inverter with mppt charge controller

Product Detail

Basic Info.

Model NO.
PV-ST101/M
Product Name
1.5kv Solar Connector Mc4 Solar PV Connector
Key Word
Solar Connector Mc4
Color
Black
MOQ
1000PCS
Voltage
1500V
Rated Current
30A
Transport Package
500pairs/CTN
Specification
1500V, 30A
Trademark
OEM/ODM
Origin
China
HS Code
85369000
Production Capacity
100000PCS/Day

Product Description

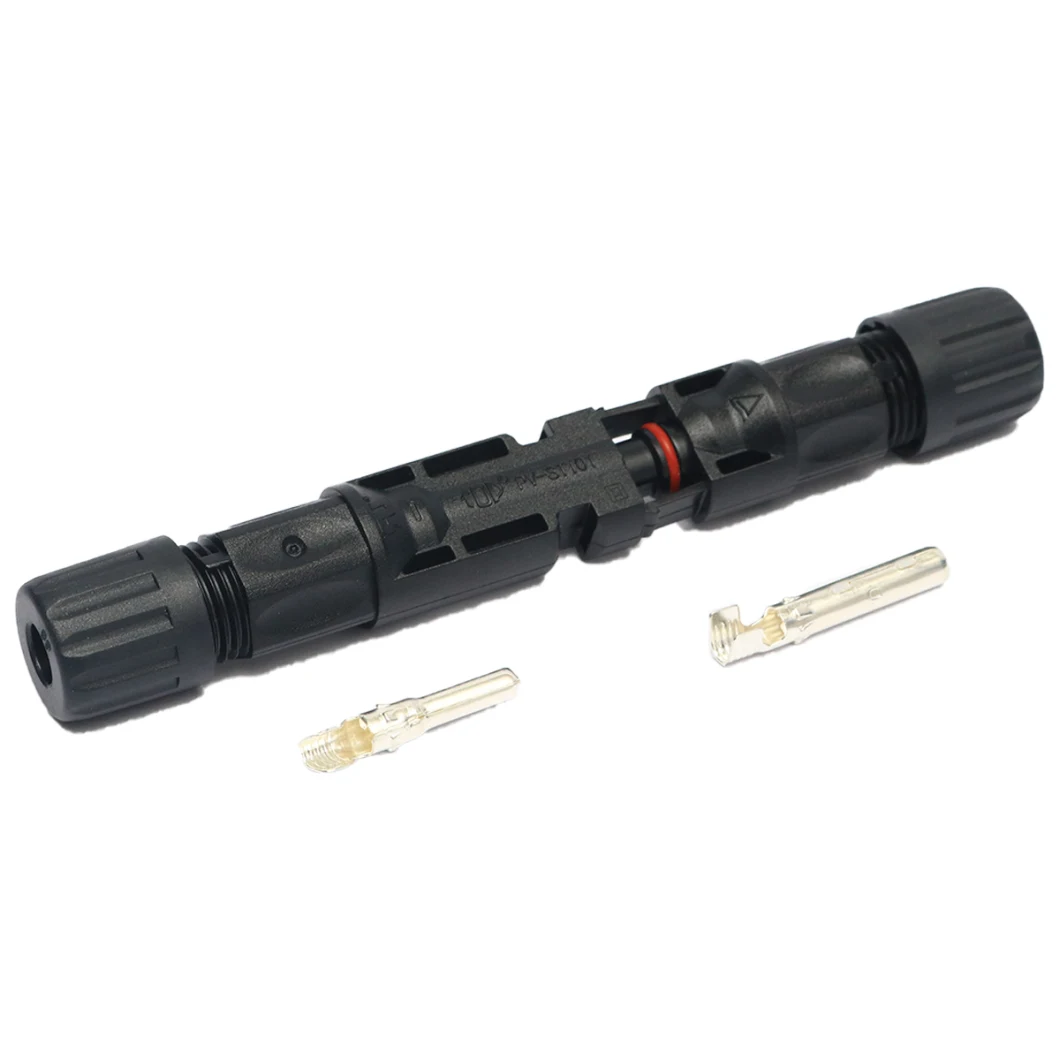

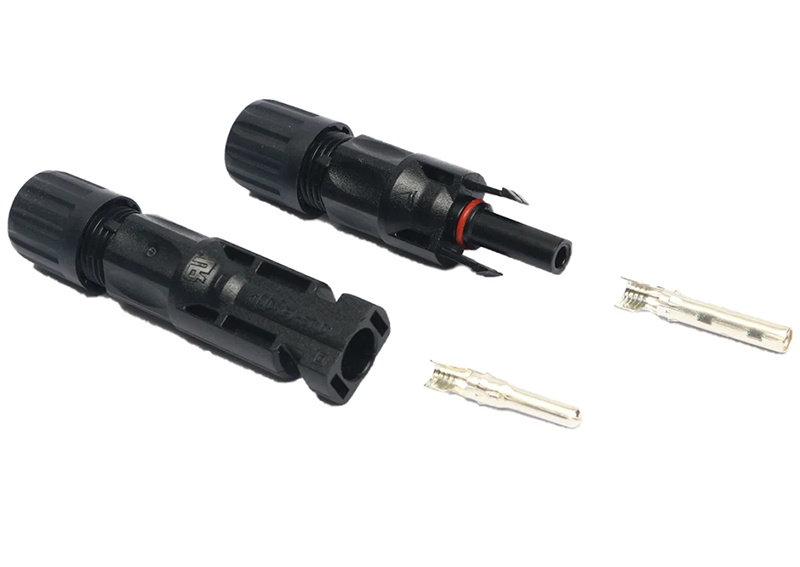

PV-ST101 TOP Hengda 1.5KV solar connector MC4 solar pv connector for solar cable and solar panel system

1. Waterproof IP68 , Safety water/dust proof

2. Make your installation quick and easy

3. High quality PPO insulation: high density, heat resistant, flame retardant, wear resistant

4. High density rubber ring:water/dust proof, high quality silicon material

5. High density silicon material.

6. Thick copper terminal: tin-plate copper, 0.4mm thickness, open size design

7. CE &TUV approved.

8. Competitive prices.

Specification

PRODUCT NAME : Waterproof Solar Connector PV-ST101/M/F
RATED MAX VOLTAGE: 1500V DC (IEC)
RATED CURRENT: 22A (2.5mm2,14AWG)
30A(4mm2,6mm2 12AWG,10AWG)
WORKING TEMPERATURE RANGE: -40ºC...+85ºC
TEST VOLTAGE : 6KV(50HZ,1Min)
DEGREE OF PROTECTION,MATED: IP68
UNMATED : IP2X
COMTACT RESISTANCE OF PLUG CONNECTOR <0.5mΩ
SATETY CLASS : II
CONTACT MATERIAL : Copper, tin plated
LOCKING SYSTEM : snap-in
FLAME CLASS: UL-90-V0
SALT MIST SPRAY TEST: IEC60068-2-52
