Sun-1000g2-Wal-H Grid Time Wind Inverter on Grid Inverters 3 Phase

Founded in 1996, Ningbo economic&technical development zone Hengda Electrical Co., Ltd., a provincial hi-tech enterprise, is specialized in the R&D, manufacture and sales service of lighting fittings and solar energy PV module connectors.


grid tie inverter

5kva hybrid inverter

hybrid three phase inverter energy storage battery

Product Detail

Basic Info.

Model NO.
DC/AC Inverters
Power Source
Wind Power
Circuit Topologies
Push-pull Type
Nature of Wave String
Sine Wave Inverter
Product Name
AC 3 Phases 45-90V Grid Tie Wind Turbine Inverter
Key Word
Grid Tie Wind Inverter
Blue or Customized
Transport Package
Packing: 54*31*15.5(cm)
HS Code
Production Capacity

Product Description

LCD Display 1000W With Limiter Sensor Wind Inverter On Grid Tie Invertor 230V 50/60Hz Output
3 phase Grid Tie Wind
Turbine Inverter on Grid 1000W

Wind Turbine Grid Tie Inverter Models

Table 1, DC Input Inverter Models
Model Rated Power
DC Input
AC Output
AC Output


Power Consumption
      95V~140V 50/60Hz
SUN-1000G2-WDL-M 1000W / 900W 22V~65V     90% 0.5W
      185V~265V 50/60Hz
      95V~140V 50/60Hz
SUN-1000G2-WDL-H 1000W / 900W 45V~90V     92% 1.5W
      185V~265V 50/60Hz


2000W / 1850W






Table 2, Three Phases Input Inverter Models


Model Rated Power
DC Input
AC Output
AC Output


Power Consumption
      95V~140V 50/60Hz
SUN-1000G2-WAL-M 1000W / 900W 22V~65V     90% 0.5W
      185V~265V 50/60Hz
      95V~140V 50/60Hz
SUN-1000G2-WAL-H 1000W / 900W 45V~90V     92% 1.5W
      185V~265V 50/60Hz


2000W / 1850W






Sunshine Grid Tie Power Inverter is the world's most technologically advanced inverter for use in utility-interactive applications. This manual details the safe installation and operation of the Sunshine Grid Tie Inverter.
This integrated system maximizes energy harvest, increases system reliability, and simplifies design, installation, and management.

The small type of wind grid tie power inverter can obtain the wind energy from wind turbines and tie to the grid through its output cables with no extra equipment. The installation is very convenient and reliable.

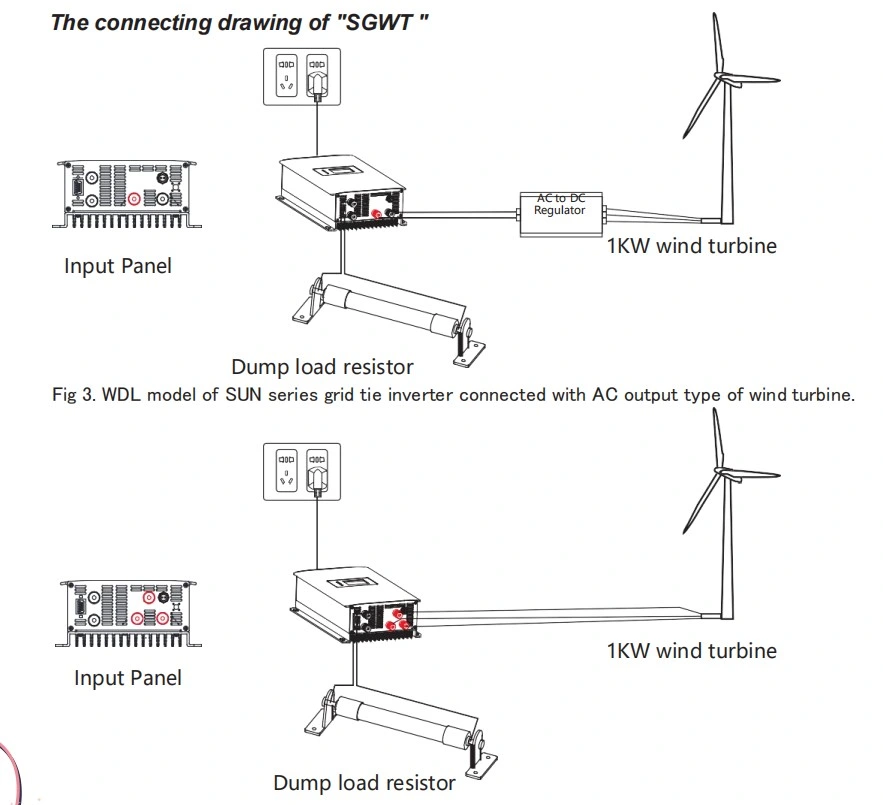

We call a system combining with a small grid tie inverter and a wind turbine as "SGWT". The system includes a wind turbine and a small grid tie inverter, and a set of the installation kit. Some "SGWT" also will include a controller, dump load resistor.
The inverter can be connected to any outlets of the utility grid at the house. The small grid tie inverter monitors the volume, frequency, and phase of the home utility grid, producing pure sine wave AC power that the frequency and phase are the same as the grids. The volume is a bit higher than the grid's, then according to the current-controlled PWM, to control the output power to the grid. The small grid tie inverter puts out power when the home grid is on.
When the wind turbine is rotating, and its output of the voltage is in the range of the rated input voltage of the inverter, the wind turbine will produce power, and the grid tie inverter will change the power from the wind turbine to the home grid. When the total power of the electric appliance that is using in the house is
larger than the output power of the inverters, this power from the inverters will be consumed in the house. This will slow down the power meter; otherwise, the difference of the output power of the inverter between the total used power of the appliance will go out from the house to the out grid.

Installation Procedure

  1. Considering the total capacity of the grid tie power system that you need
  2. Choosing an applicable wind turbine for Sunshine Grid Tie Inverter
  3. Selecting a set of accessory for installation of the Grid Tie Power System
  4. Selecting the correct model of Sunshine Grid Tie Inverter
  5. Installing the wind turbine to a suitable place
  6. Installing Sunshine Grid Tie Inverter to a suitable place
  7. Connecting Sunshine Grid Tie Power System with cables and connectors
  8. Grounding the system

Step1. Considering the total capacity of the grid tie power system that you need.
The whole grid tie power system's total capacity is according to your power consumption in
the site you want to install, or how much power you want it to feed to the utility grid. The volume is just according to your will because when the total power of electric appliances used in the installation site is larger than the output power of the grid tie power system, this power from the system will be consumed in the site, this will slow down the power meter; otherwise, the difference of the system's output power between the total used power of the appliances will feed to the utility grid.

For example, suppose you want to install a grid tie power system in your house. In that case, you could decide the total power volume according to the total power the appliances that you use in your house, maybe the consumption of total energy per day is about 5KWH. You should realize the averaged speed of the wind per day at your site, check the power to the speed of the wind curve from the specifications of the wind turbine, then you can estimate the average power that the wind turbine can generate, actually the real average power the wind turbine can generate at your side is not easy to estimate, you need to check the history data of the climate because it will vary every day according to the climate, just assume a 1KW rated wind turbine is suitable for the grid tie power system that you plan to set, with this capacity of the system, it can supply all power consumption in the whole year. When the grid tie power system is working, sometimes, there is extra power feed to the utility grid if the power from the grid tie system is larger than the power consumed by the appliances in your house, and sometimes will not when it is not larger.

If you use a 1KW wind turbine, then we call the "GTWT" system is a 1KW grid tie power system. Of course, you can install a 500W grid tie power system or a 2KW grid tie system, even more large capacity or more small capacity grid tie system, it doesn't matter. But if the capacity is too big, you should consider the volume of the AC system of your house, whether it can hold the fed power or not.

Step2. Choosing Applicable Wind Turbine For Wind Turbine Grid Tie Inverter
