5.5kw Solar Edge Inverter Solar Inverter Solar Pump Low Frequency Inverter with MPPT VFD Function


Founded in 1996, Ningbo economic&technical development zone Hengda Electrical Co., Ltd., a provincial hi-tech enterprise, is specialized in the R&D, manufacture and sales service of lighting fittings and solar energy PV module connectors.

keyword:

and inverters on off grid tied solar power

solar charger

energy storage

Product Detail

Basic Info.

Model NO.
SUNT-5.5KW-H
Brand
Top
Type
DC/AC Inverters
Power Source
Solar Power, Battery
Circuit Topologies
Push-pull Type
Nature of Wave String
Sine Wave Inverter
Product Name
5500W Solar Inverter Hybrid
Key Word
Solar Inverter Hybrid
MOQ
10PCS
Color
Silver or Customized
CTN Size
57*42*22cm
G.W.
12.5kg
Transport Package
1PCS/CTN
Specification
440x307x121(mm)
Trademark
OEM/ODM
Origin
China
HS Code
8504409999
Production Capacity
1000PCS/Day

Product Description

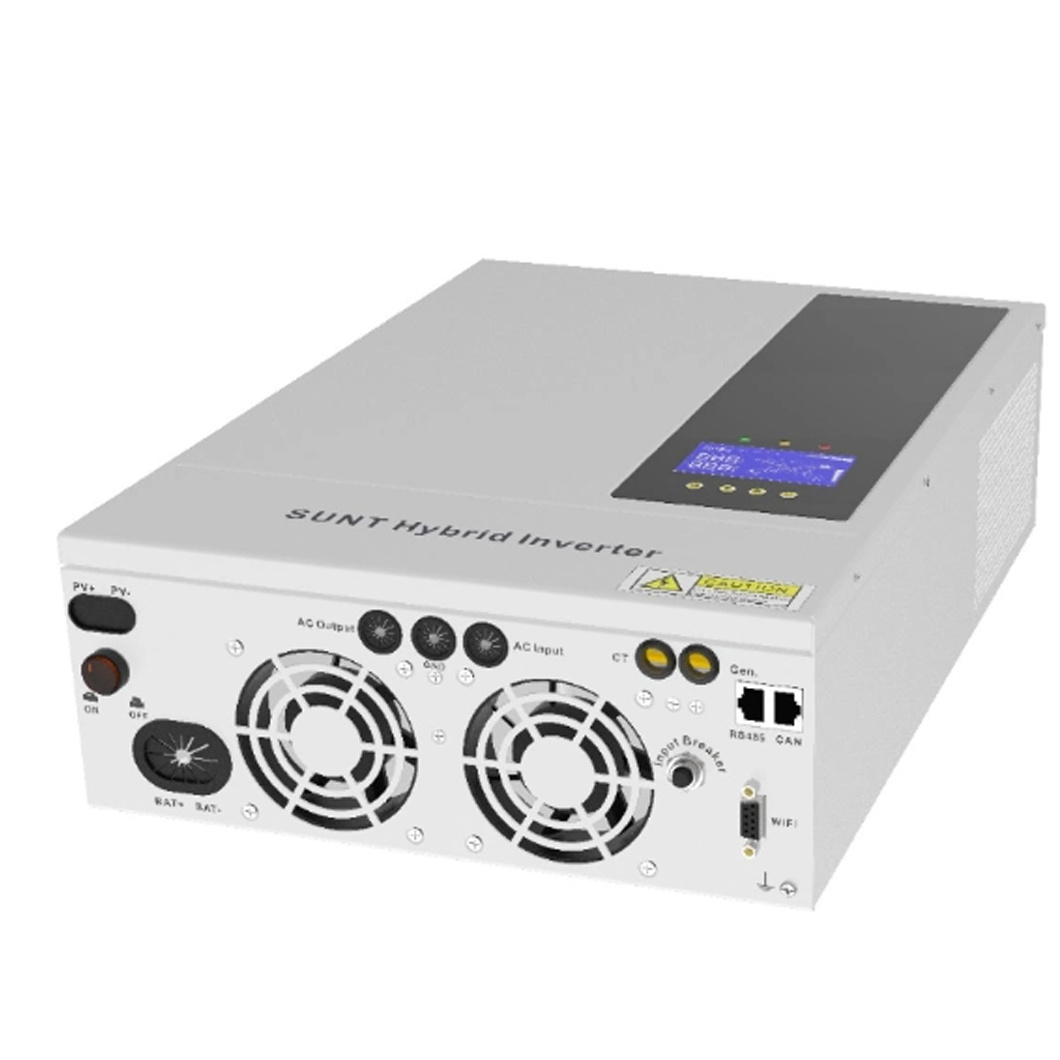

New arrival 5.5KW hybrid solar inverter

1.1 INTERACTIVE
* Easy and simple to understand display
* Supporting Wi-Fi and Bluetooth
* Visual power flow screen
* Built-in MPPT Charger and AC Charger
* Smart settable 3-stage charging for optimized battery performance

1.2 COMPATIBLE
* Compatible with main electrical grid voltages or power generators
* On-grid, and off-grid pure sine wave inverter
* Auto restart while AC is recovering

1.3 CONFIGURABLE
* Fu-lly programmable controller

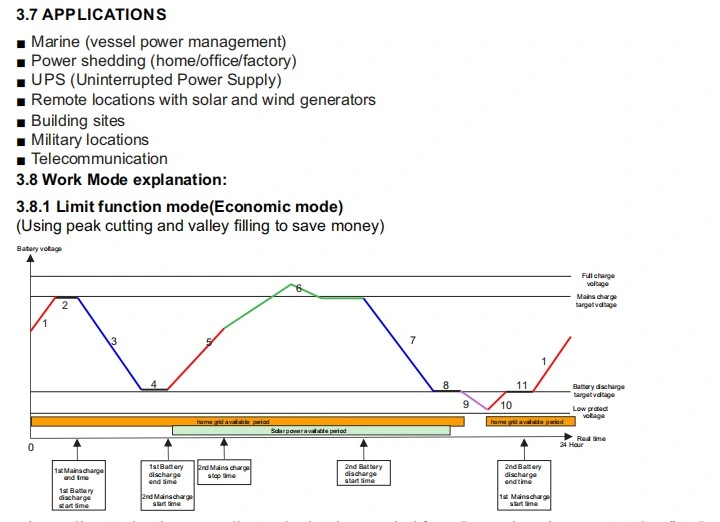

* Programmable mu-ltiple operation modes: LIMIT function mode(Economic mode) No limit function mode(UPS mode)
* Configurable battery charging - current/voltage based on applications
* Charger and discharge work time

1.4 SECURE
* Overload/over-temperature/short-circuit protection
* Smart battery charger design for optimized battery protection /Battery over charge and discharge protection.
* Limiting function installed to prevent excess power overflow to grid ("Zero export")

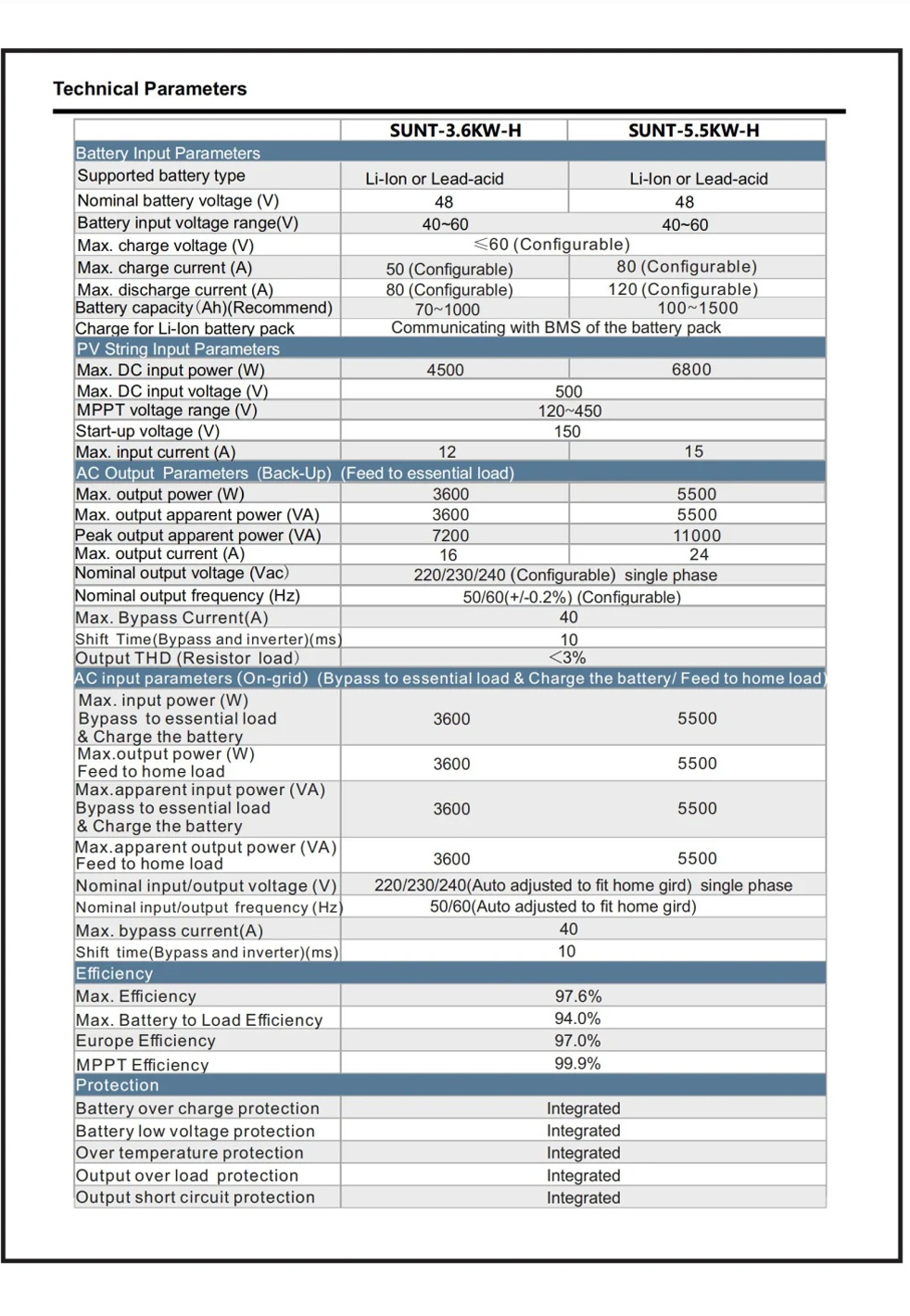

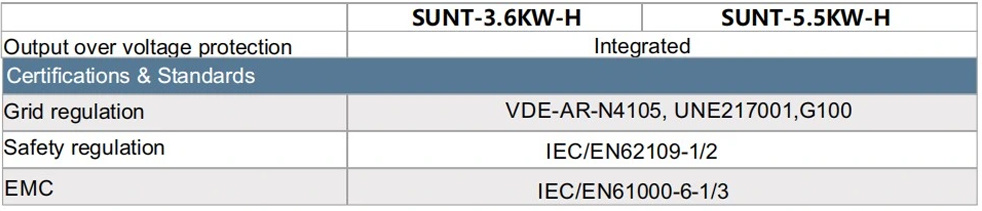

Specification



PV Cable(suggested)
Model Wire Size Max Current (A) Cable(mm^2)
3.6Kw 11 AWG 12 4.17
5.5Kw 10 AWG 15 5.26

Battery Cable(suggested)
Model Wire Size Max Current (A) Cable(mm^2)
3.6Kw 3 AWG 80 26.7
5.5Kw 1 AWG 120 42.4

AC output Cable & AC input Cable(suggested)
Model Wire Size Max Current (A) Cable(mm^2)
3.6Kw 10 AWG 15 5.26
5.5Kw 8 AWG 24 8.37

Company Profile

图片名称

Top Hengda Electrical is a provincial hi-tech enterprise specialized in the R & D, manufacture and sales service of renewable energy such as inverters, solar panels, lithium batteries, solar connectors, junction boxes, lighting fittings etc. Our company covers an area of 11000 square meters, total investment of 10 million US dollars, with history of over 30 years.

Aiming at solar energy industry, based on the concept of "making the unique and the best products", TOP employed many talented personnel, began to research and develop solar products as early as 2004. We have 45pcs of different kinds of injection machines, 72pcs of different kinds of punching machines, more than 20pcs of ultrasonic welding machines, and many other advanced technology, assembling machines and testing equipment. Continuous developed, innovation goes on as it never ends. Our brand "Top" has won considerable domestic market share and a stable client base overseas. All products are certified with the certificates of C Q C, T U V, UL, V D E, CE, RoHS, S G S and so on. Our factory has obtained the certificates of I S O 9 0 0 1 Quality Management System and I S O1 4 0 0 1 Environmental Management System. With more than 30 years producing experience, our annual output has reached about 10,000,000pcs and we have exported more than 100 countries all over the world.

Welcome to inquire us! We will try our best to serve you satisfied.

Certification

图片名称

Packing & Delivery

图片名称

Packing:Customized packing, Can be designed according to customer's requirements, manual can be multi-languages, add customer logo, etc.
Delivery:We can do EXW, FOB, CIF, CNF, DDA, DDP service for most of the countries all over the world.

Faq

Q1: How to install and use the solar inverter?
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.
Q2: What if I don't have export experience ?
A2: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the most suitable shipping service.
Q3:Can you provide the free shipping to sea port ?
A3:Yes, we provide the free shipping to your convenient sea port.If you have agent in China, we can also ship it to them for free.
Q4: How is your technical support?
A4: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video. call anytime,our engineer will also go to oversea help our customers if necessary.
Q5: Can you get the the solar inverter customized for us ?
A5: Of course, brand name, machine color, designed unique patterns available for customization.
Q6: How to become your agent?
A6:Contact us through Whatsapp/ Skype/ Wechat/ Email, we will give you the best price and look forward to your greetings
