CD-200/2K Wholesale RoHS Waterproof Wire Protection Connector Metal Brass Cable Seal Connectors


Founded in 1996, Ningbo economic&technical development zone Hengda Electrical Co., Ltd., a provincial hi-tech enterprise, is specialized in the R&D, manufacture and sales service of lighting fittings and solar energy PV module connectors.


quick connector

connectors terminals

adapters connectors

Product Detail

Basic Info.

Model NO.
Product Name
IP68 Wire Waterproof Connector
Key Word
Waterproof Connector
Working Temperature
-20 to 85c
16A, 450V
Transport Package
Plug 35g, Socket 36g
HS Code
Production Capacity

Product Description

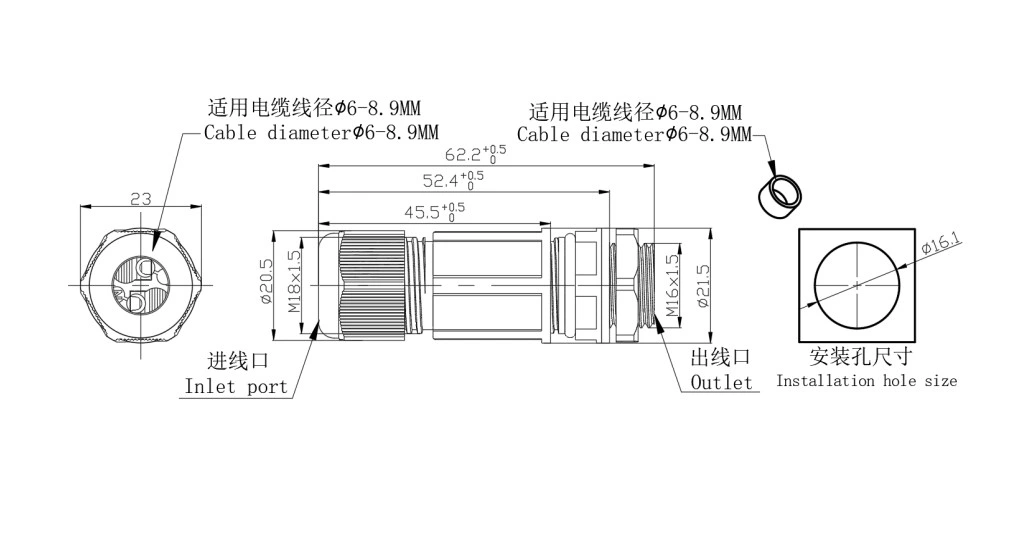

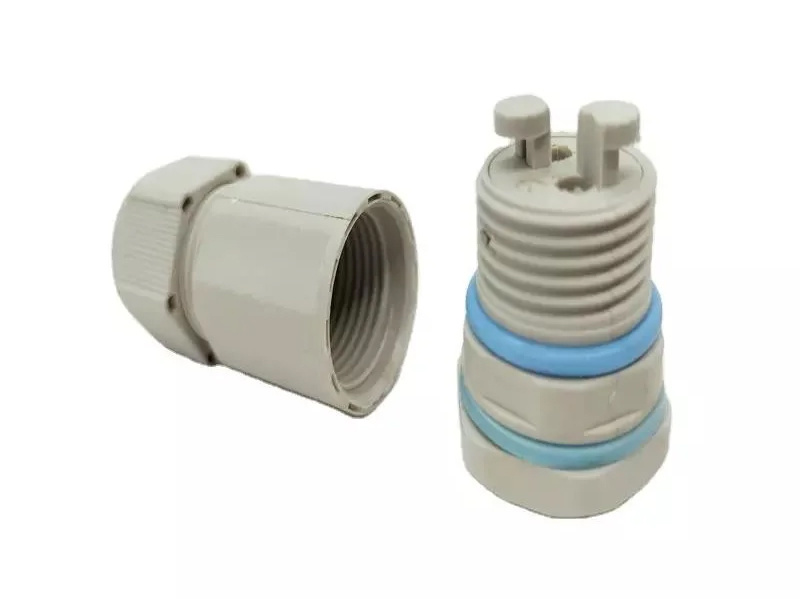

CD-200/2K Top Hengda IP68 wire waterproof connector with 2 or 3 poles

Relying on our experience for over 26 years in lighting fitting production management and economic strength, we produce both a full variety of new energy-saving lighting fittings , connector and terminals, and solar energy PV module connectors. Our annual output of lighting fittings is over 80,000,000 pieces with product certifications of CQC, UL, VDE, CE, CSA and RoHS.


1. Model:CD-200-2K
2. Places:2P
3. Color:Gray/Customizable
4. Flammability:94V-0
5. Operating temperature:T85
6. Class of pollution:2
7. Protection grade:IP68(1m1h)
8. Packing type:Carton packaging
9. Electric parameters: AC250V 16A
10.Pulse withstand voltage: 2500V
11. Insulation resistance:DC500V  500MΩ
12. Apply of inlet wire diameter:0.5-1.5MM²
13. Outlet for wire diameter:0.5-1.5MM²

Company Profile


Top Hengda Electrical is a provincial hi-tech enterprise specialized in the R & D, manufacture and sales service of renewable energy such as inverters, solar panels, lithium batteries, solar connectors, junction boxes, lighting fittings etc. Our company covers an area of 11000 square meters, total investment of 10 million US dollars, with history of over 30 years.

Aiming at solar energy industry, based on the concept of "making the unique and the best products", TOP employed many talented personnel, began to research and develop solar products as early as 2004. We have 45pcs of different kinds of injection machines, 72pcs of different kinds of punching machines, more than 20pcs of ultrasonic welding machines, and many other advanced technology, assembling machines and testing equipment. Continuous developed, innovation goes on as it never ends. Our brand "Top" has won considerable domestic market share and a stable client base overseas. All products are certified with the certificates of C Q C, T U V, UL, V D E, CE, RoHS, S G S and so on. Our factory has obtained the certificates of I S O 9 0 0 1 Quality Management System and I S O1 4 0 0 1 Environmental Management System. With more than 30 years producing experience, our annual output has reached about 10,000,000pcs and we have exported more than 100 countries all over the world.

Welcome to inquire us! We will try our best to serve you satisfied.



Packing & Delivery



Q1: What is your company's Main Products ? You are the Manufacturer or the trader ?
A1:Solar system products, such as inverters, solar panels, lithium batteries, solar connectors, junction boxes etc.Lighting fittings, such as lamp holders, terminal blocks, lighting connectors,etc.
We're the Manufacturer with more than 30 years experience.

Q2: What if I don't have export experience ?
A2: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you
choose the most suitable shipping service.

Q3:Can you provide the free shipping to sea port ?
A3:Yes, we provide the free shipping to your convenient sea port.If you have agent in China, we can also ship it to them for free.

Q4: How is your technical support?
A4: We provide lifetime online support through WhatsApp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you
video. call anytime,our engineer will also go to oversea help our customers if necessary.

Q5: How to become your agent?
A5:Contact us through WhatsApp/ Skype/ Wechat/ Email., we will give you the best price and look forward to your greetings
