5poles Fast Connectors and Teriminals Wire Connecting


Founded in 1996, Ningbo economic&technical development zone Hengda Electrical Co., Ltd., a provincial hi-tech enterprise, is specialized in the R&D, manufacture and sales service of lighting fittings and solar energy PV module connectors.


wire to board terminal connector with screw holes

screw terminal block connector

wire connectors

Product Detail

Basic Info.

Model NO.
Terminal Material
Interface Type
Product Name
5 Pin Male Female Power Wiring Assembly P
5 Poles Connector
Cable Length
Transport Package
cable type 3*1.5mm2-2.5mm2
HS Code
Production Capacity

Packaging & Delivery

Package size per unit product
10.00cm * 5.00cm * 5.00cm
Gross weight per unit product

Product Description

CD-100/5KM/5KF TOP Hengda GST18I3S 250V/400V 16A 3 Pin Male Female power wiring assembly Plug Connector for Lighting fixtures

Relying on our experience for over 26 years in lighting fitting production management and economic strength, we produce both a full variety of new energy-saving lighting fittings , connector and terminals, and solar energy PV module connectors. Our annual output of lighting fittings is over 80,000,000 pieces with product certifications of CQC, UL, VDE, CE, CSA and RoHS.

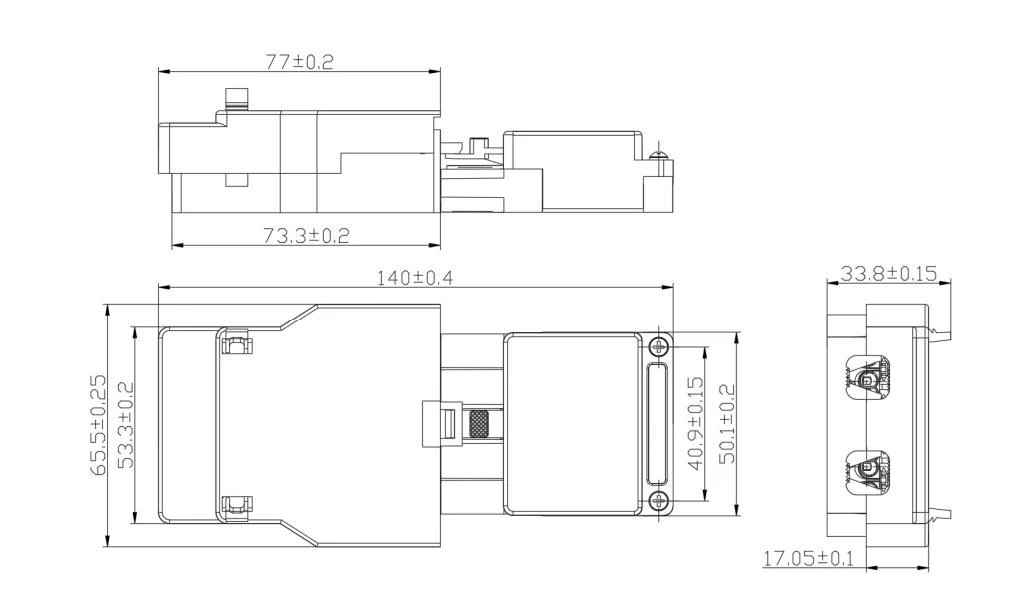

CD-100/5KM CD-100/5KF
-With strain relief and locking piece is separated
-Without marking
-With PA body,and brass contacts
- With nickel plated
- Plug 50g,Socket 35g
-housing:Polyamide 66(94-V2 grade)

Metal Parts:Tin-plated Brass
Ambient Temperature: T110oC
Wiring Capacity:0.75-2.5mm2
Voltage/Ampere Rating: 250V / 400V 16A
Ready to fit, with strain relief
For cross section 0.75 - 2.5 mm², solid and flexible wires can be connected without end sleeves
For cable outer diameters 6.5 - 10.5 mm (H05VV-F 3G0.75mm2 to 2.5mm2)
Outer sheath stripped length 31 mm
insulation stripped length: 7 mm
Colour black
*For fitting to 3-cord Round Cable

Item CD-100/5KM CD-100/5KF
Place of Origin Ningbo,China
Voltage 250V/400V, 16A
Brand Name TOP
Material With PA body,and brass contacts,With nickel plated
Style Push in
Certification TUV
Color Black

Company Profile


Top Hengda Electrical is a provincial hi-tech enterprise specialized in the R & D, manufacture and sales service of renewable energy such as inverters, solar panels, lithium batteries, solar connectors, junction boxes, lighting fittings etc. Our company covers an area of 11000 square meters, total investment of 10 million US dollars, with history of over 30 years.

Aiming at solar energy industry, based on the concept of "making the unique and the best products", TOP employed many talented personnel, began to research and develop solar products as early as 2004. We have 45pcs of different kinds of injection machines, 72pcs of different kinds of punching machines, more than 20pcs of ultrasonic welding machines, and many other advanced technology, assembling machines and testing equipment. Continuous developed, innovation goes on as it never ends. Our brand "Top" has won considerable domestic market share and a stable client base overseas. All products are certified with the certificates of C Q C, T U V, UL, V D E, CE, RoHS, S G S and so on. Our factory has obtained the certificates of I S O 9 0 0 1 Quality Management System and I S O1 4 0 0 1 Environmental Management System. With more than 30 years producing experience, our annual output has reached about 10,000,000pcs and we have exported more than 100 countries all over the world.

Welcome to inquire us! We will try our best to serve you satisfied.



Packing & Delivery



Q1: What is your company's Main Products ? You are the Manufacturer or the trader ?
A1:Solar system products, such as inverters, solar panels, lithium batteries, solar connectors, junction boxes etc.Lighting fittings, such as lamp holders, terminal blocks, lighting connectors,etc.
We're the Manufacturer with more than 30 years experience.

Q2: What if I don't have export experience ?
A2: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you
choose the most suitable shipping service.

Q3:Can you provide the free shipping to sea port ?
A3:Yes, we provide the free shipping to your convenient sea port.If you have agent in China, we can also ship it to them for free.

Q4: How is your technical support?
A4: We provide lifetime online support through WhatsApp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you
video. call anytime,our engineer will also go to oversea help our customers if necessary.

Q5: How to become your agent?
A5:Contact us through WhatsApp/ Skype/ Wechat/ Email., we will give you the best price and look forward to your greetings
