3 Way Gst Connector Male to Free End Cable Length Customized
Founded in 1996, Ningbo economic&technical development zone Hengda Electrical Co., Ltd., a provincial hi-tech enterprise, is specialized in the R&D, manufacture and sales service of lighting fittings and solar energy PV module connectors.
led strip light connector
CD-100-3BF-P Top Hengda Cable - Schuko Plug Gst18i3 Weiland Female Conector
1. Waterproof IP68 , Safety water/dust proof
2. Make your installation quick and easy
3. High quality PPO insulation: high density, heat resistant, flame retardant, wear resistant
4. High density rubber ring:water/dust proof, high quality silicon material
5. High density silicon material.
6. Thick copper terminal: tin-plate copper, 0.4mm thickness, open size design
7. CE &TUV approved.
8. Competitive prices.

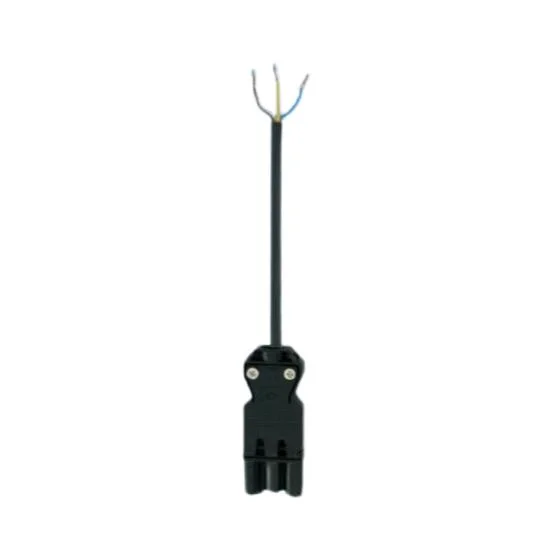

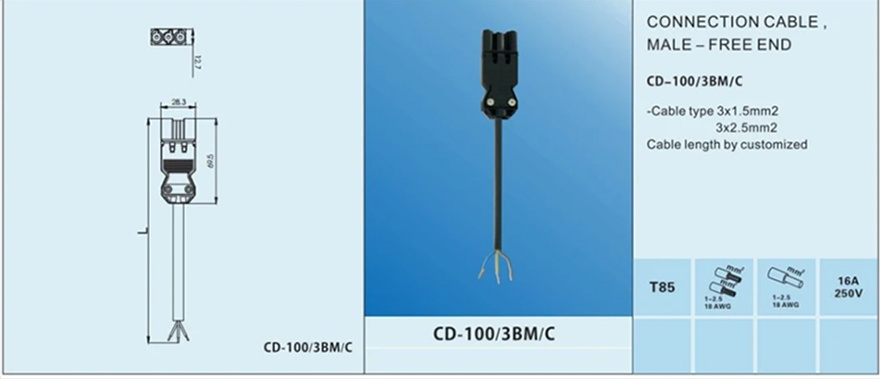

Male - free end
-Cable type 3x 1.5mm2
Cable length by customized
-With strain relief and locking piece is separated -Without marking
-With PA body,and brass contacts
- With nickel plated
- Plug 17,2g,Socket 18,2g
-housing:Polyamide 66(94-V2 grade)
Metal Parts:Tin-plated Brass
Ambient Temperature: T110oC
Voltage/Ampere Rating: 250V / 400V 16A
Ready to fit, with strain relief
For cross section 0.75 - 2.5 mm², solid and flexible wires can be connected without end sleeves
For cable outer diameters 6.5 - 10.5 mm (H05VV-F 3G0.75mm2 to 2.5mm2)
Outer sheath stripped length 31 mm
insulation stripped length: 7 mm
*For fitting to 3-cord Round Cable
Top Hengda Electrical is a provincial hi-tech enterprise specialized in the R & D, manufacture and sales service of renewable energy such as inverters, solar panels, lithium batteries, solar connectors, junction boxes， lighting fittings etc. Our company covers an area of 11000 square meters, total investment of 10 million US dollars, with history of over 30 years.
Aiming at solar energy industry, based on the concept of "making the unique and the best products", TOP employed many talented personnel, began to research and develop solar products as early as 2004. We have 45pcs of different kinds of injection machines, 72pcs of different kinds of punching machines, more than 20pcs of ultrasonic welding machines, and many other advanced technology, assembling machines and testing equipment. Continuous developed, innovation goes on as it never ends. Our brand "Top" has won considerable domestic market share and a stable client base overseas. All products are certified with the certificates of C Q C, T U V, UL, V D E, CE, RoHS, S G S and so on. Our factory has obtained the certificates of I S O 9 0 0 1 Quality Management System and I S O1 4 0 0 1 Environmental Management System. With more than 30 years producing experience, our annual output has reached about 10,000,000pcs and we have exported more than 100 countries all over the world.
Welcome to inquire us! We will try our best to serve you satisfied.
Packing & Delivery
Q1: What is your company's Main Products ? You are the Manufacturer or the trader ?
A1:Solar system products, such as inverters, solar panels, lithium batteries, solar connectors, junction boxes etc.Lighting fittings, such as lamp holders, terminal blocks, lighting connectors,etc.
We're the Manufacturer with more than 30 years experience.
Q2: What if I don't have export experience ?
A2: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you
choose the most suitable shipping service.
Q3:Can you provide the free shipping to sea port ?
A3:Yes, we provide the free shipping to your convenient sea port.If you have agent in China, we can also ship it to them for free.
Q4: How is your technical support?
A4: We provide lifetime online support through WhatsApp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you
video. call anytime,our engineer will also go to oversea help our customers if necessary.
Q5: How to become your agent?
A5:Contact us through WhatsApp/ Skype/ Wechat/ Email., we will give you the best price and look forward to your greetings
