CD-100-3bf-P Top Hengda Cable - Schuko Plug Gst18I3 Weiland Female Fast Connector Gst 3way Wire Connectors 3poles Terminals Power Quick Connector 3 Pin


Founded in 1996, Ningbo economic&technical development zone Hengda Electrical Co., Ltd., a provincial hi-tech enterprise, is specialized in the R&D, manufacture and sales service of lighting fittings and solar energy PV module connectors.


splice connector

wire connectors


Product Detail

Basic Info.

Model NO.
Interface Type
Nominal Voltage
Product Name
Cable - Schuko Plug Gst18I3 Weiland Female Connec
Key Word
Cable - Schuko Plug Gst
Cable Length
0.3m, 1m, 2m, Customized
1.5mm2, 2.5mm2
EU, UK, etc.
Transport Package
cable type 3*1.5mm2-2.5mm2
HS Code
Production Capacity

Product Description

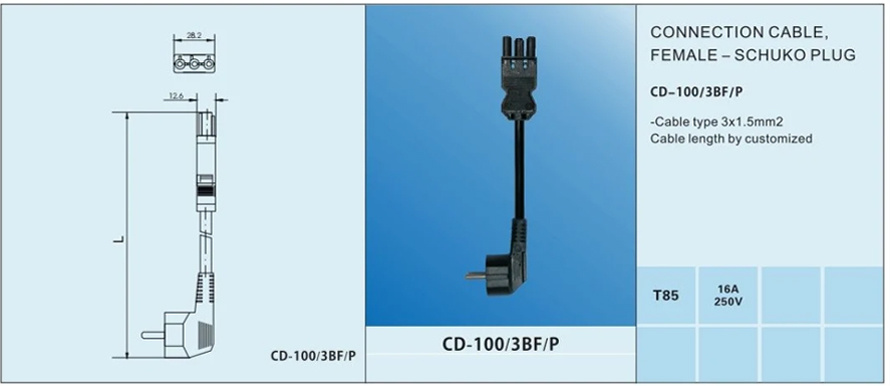

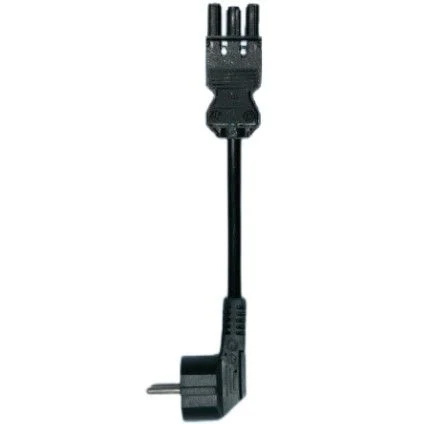

CD-100-3BF-P Top Hengda Cable - Schuko Plug Gst18i3  Weiland Female Conector

1. Waterproof IP68 , Safety water/dust proof

2. Make your installation quick and easy

3. High quality PPO insulation: high density, heat resistant, flame retardant, wear resistant

4. High density rubber ring:water/dust proof, high quality silicon material

5. High density silicon material.

6. Thick copper terminal: tin-plate copper, 0.4mm thickness, open size design

7. CE &TUV approved.

8. Competitive prices.

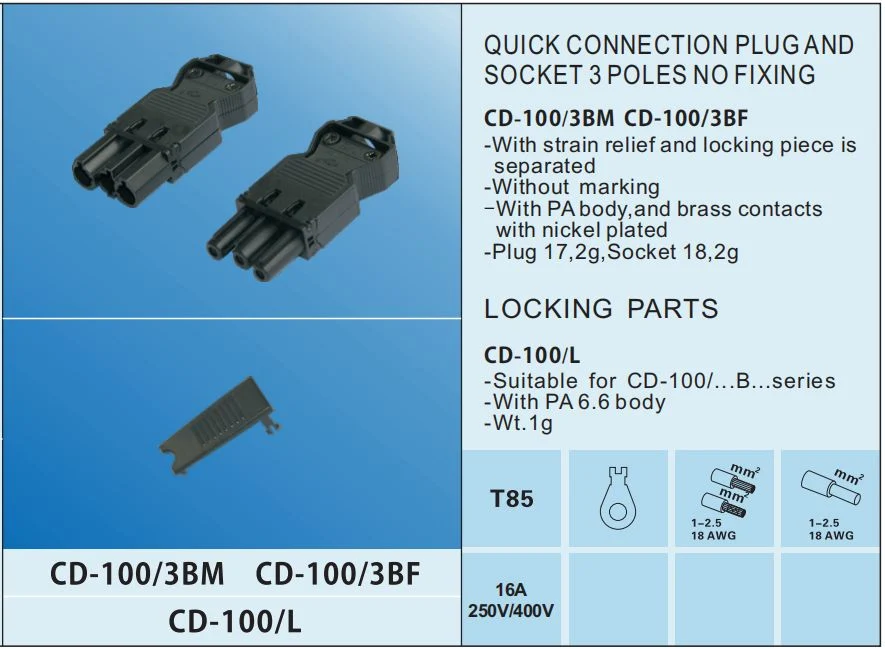

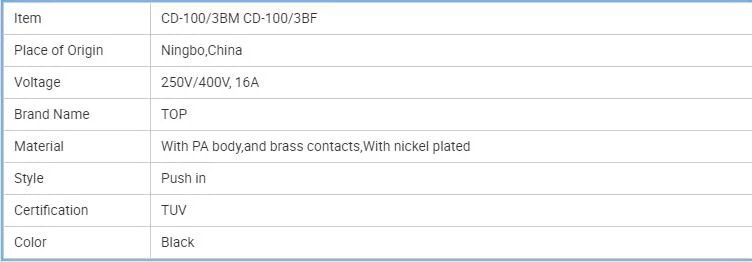

CD-100/3BM CD-100/3BF

-With strain relief and locking piece is separated -Without marking
-With PA body,and brass contacts
- With nickel plated
- Plug 17,2g,Socket 18,2g
-housing:Polyamide 66(94-V2 grade)
Metal Parts:Tin-plated Brass
Ambient Temperature: T110oC
Wiring Capacity:0.75-2.5mm2
Voltage/Ampere Rating: 250V / 400V 16A
Ready to fit, with strain relief
For cross section 0.75 - 2.5 mm², solid and flexible wires can be connected without end sleeves
For cable outer diameters 6.5 - 10.5 mm (H05VV-F 3G0.75mm2 to 2.5mm2)
Outer sheath stripped length 31 mm
insulation stripped length: 7 mm
Colour black
*For fitting to 3-cord Round Cable
